Introduction

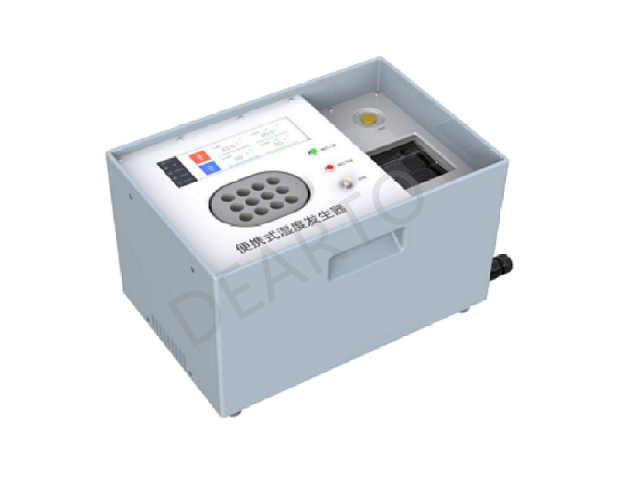

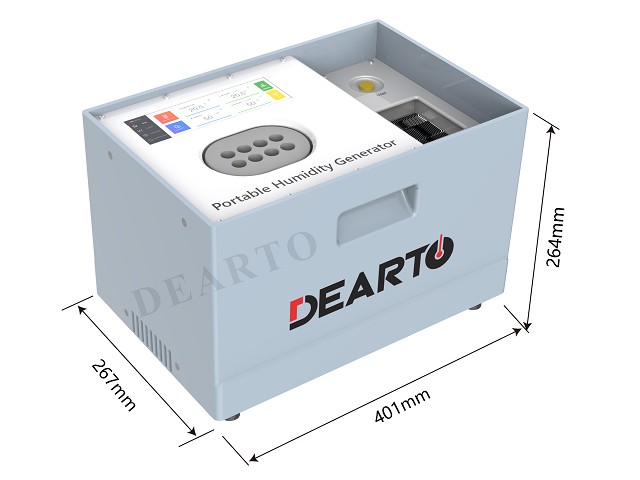

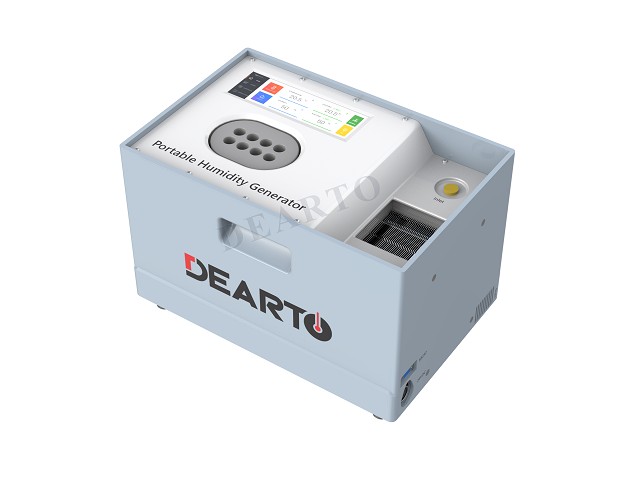

TADT-4G Portable Humidity Generator is a high-precision, portable temperature and humidity calibration instrument designed to meet the metrological calibration needs of temperature and humidity sensors, transmitters, and other small temperature and humidity measuring instruments.
Product Features
1. TADT portable humidity generator space is (3~5) times that of the same product, provide efficient test conditions;
2. TADT humidity can accommodate various types of input cold mirror dew point probe, which is convenient for comparison and calibration;
3. Combined sensor jack design, can be adapted to various diameter temperature and humidity sensors and transmitters;
4. The transparent window and lighting design of the measuring room facilitate the reading of various small temperature and humidity meters;
5. Can be calibrated at the same time (10~15) only small temperature and humidity probe;
6. Can calibrate (3-5) digital temperature and humidity meters of conventional size at the same time;
7. This portable humidity generator provides temperature uniformity within 0.1℃ in the range of 5℃~50;
8. External drying cylinder design, desiccant replacement in the state of on-line operation, convenient and simple;
9. Two-zone drying cylinder design, supporting both molecular sieve and discoloration silica gel desiccant;
10. Visual liquid level and dryer state display, conducive to the working process of state monitoring;
11. Provides 4-channel external (0~1)V,(0~5)V and (4~20)mA standard signal input;
12. The instrument has built-in humidity conversion software, which is convenient for users to convert relative humidity, temperature and dew point temperature;
13. Support temperature and humidity curve display, easy for users to view the temperature and humidity state trend;
14. 7-inch color LCD touchscreen
Technical indicators
Model | TADT-1G | TADT-2G | TADT-3G | TADT-4G |
Working volume (L) | 5 | 9 | 1.5 | 2.3 |
Temp. Range (℃) | 5 to 50 | 5 to 50 | 5 to 50 | 0 to 60 |
Hum. range(% RH) | 5 to 95 | 5 to 95 | 5 to 95 | 5 to 95 |
Operation size (mm) | 160 * 175 * 175 | 280 * 175 *175 | 120*100*130 | φ135*160 |
Dimension (mm) | 550*300*600 | 370*480*200 | 400*265*265 | |
Temp. MPE | ±0.05℃ (20℃±3℃) | ±0.05℃ (20℃±3℃) | ||
Humidity MPE | ±0.8 %RH（20℃） | ±1.0%RH (20℃) | ||
Temp. uniformity | ≤ 0.1 (20 ± 3℃) | ≤0.1 (@20℃） | ||
Hum. Uniformity | ≤ 0.5 (20 ± 3℃) | ≤0.5 (@20℃) | ||
Temp. Stability | ± 0.05 | ±0.05 (@20℃) | ||
Hum. Stability | ± 0.5 | ±0.5 (5%RH~80%RH) (@20℃) | ||
Sensor Test Window | Modular design, | Modular design (Test Window 1# & 2#) | ||
Standard Hole | Max. hole diameter: 60mm | 1#: φ15mm *8 holes | ||
Customizable hole quantity and diameter | ||||
Communication Interface | RS232 or RS485 | |||
Power | 750W | 360W | ||
Temperature Range | Operating: 10°C ~ 35°C | Operating: 10°C ~ 35°C | ||
Humidity Range | Operating: 0%RH ~ 85%RH | Operating: 0%RH ~ 85%RH | ||
Weight | 20kg | 15kg | ||
Power Supply | 220VAC±10%, 50Hz | 220VAC±10%, 50Hz | ||
