Introduction

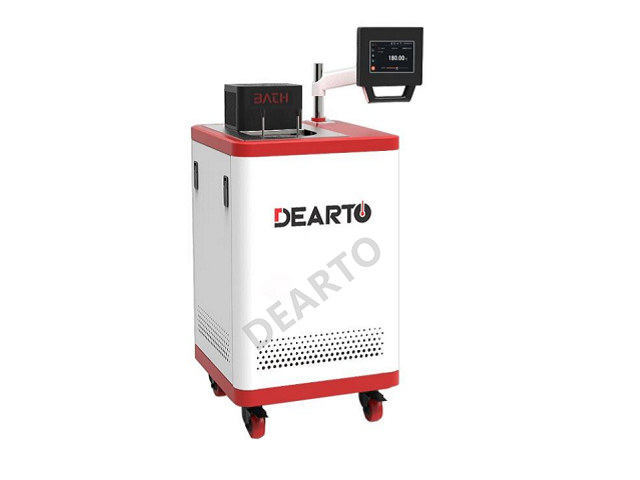

DTW high temperature precision salt baths is a new product developed according to the user's requirements for temperature element verifification. It has the same structure as the standard oil tank used in the laboratory. It has an independent heating system, a stirring system and an original Japanese version up to 0.1 The imported temperature control system provides users with a precise heat source. It has a wide temperature range, high temperature control accuracy throughout the temperature range, liquid medium pressureless, non-toxic, non-corrosive, and the detection and insertion hole diameter can be replaced by the old heat pipes.

DTW high temperature salt bath is suitable for high-precision detection of temperature components such as thermocouples and thermal resistances.

Technical Parameters

Functions and Features

1.Linear temperature control

The salt bath supports linear heating at a specified rate, meeting the calibration, validation, and verification requirements of various temperature switches.

2.Multi-point calibration & correction

Temperature is corrected segmentally, with automatic linear fitting between set values (SV) and process values (PV). Temperature points are PID controlled segmentally and saved automatically to ensure precise temperature control at any setpoint.

3.Automatic temperature control

Heating and stirring are fully automatically controlled, eliminating the need for manual operation.

4.Scheduled salt melting function

The bath supports automatic startup, shutdown and salt melting at set time, improving operational efficiency.

5.Comprehensive communication support

Smart models support USB, Wi-Fi, WLAN, and serial communication, enabling data upload and export.

6.Smart large touchscreen control

A large capacitive touchscreen is embedded with intuitive operation system The smart interface supports multi-function window displays. Real-time stability and temperature control curve are calculated and displayed. Multi-touch supports for free zooming and panning.

7.Language and units

The system supports English and Chinese interfaces. Temperature units can be switched between Fahrenheit (°F), Celsius (°C), and Kelvin (K).

8.Dual independent protection circuits

Dual independent protection circuits automatically cut power in case of overheating, providing enhanced safety.
