Introduction

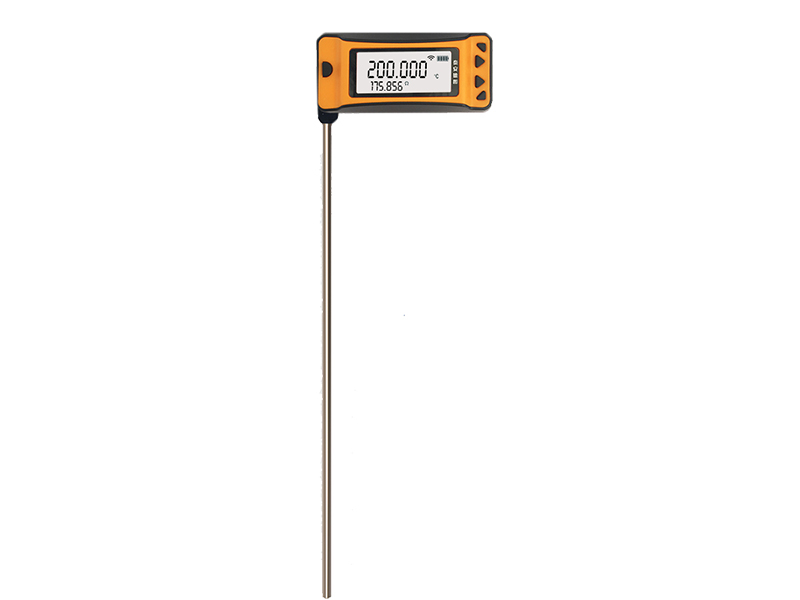

DTSW-2 Stick Type Industrial Grade Precision Digital Thermometer is a new choice in the field of industrial temperature calibration and precision measurement. Its accuracy and repeatability can reach better than 0.1 ℃ / year. Convenient, intuitive reading, durable. This Precision Thermometer Not only can it be used as a temperature standard in the laboratory, it can also provide reliable, accurate and high-precision temperature measurement in the industrial field.
Function
◇ Accurate and reliable: The accuracy and repeatability of industrial thermometers are better than 0.1/0.2°C/year
◇ Wireless communication: Real-time data can be transmitted to the computer screen display through wireless communication
◇ Curve display: the computer software can display real-time curve of up to 32 thermometers in real time
◇ Data record: can store 16000 temperature measurement results with time scale
◇ Intelligent indication: the trend indicator shows the temperature change trend
◇ Zero mark: any zero mark, visual display of fluctuation and deviation value
◇ Intelligent processing: large, small and average values are displayed directly after calculation
◇ Unit conversion: K, ℃, ℉ can be switched at will
◇ Resistance value display: the sensor resistance value and temperature value are displayed synchronously and correspondingly
◇ Scheduled shutdown: the shutdown time can be set freely from 1 minute to 48 hours
◇ Ultra-low power consumption: no need to replace the battery for life
◇ Sampling is adjustable: sampling period 1S to 2H can be customized, convenient for regular sampling
◇ Clean and anti-corrosion: using food grade 316 stainless steel probe is corrosion-resistant and easy to clean
◇ Easy charging: The charging port is compatible with mobile phones, any standard USB port can be easily charged
Technical Parameters
| Product name | Stick standard digital thermometer | Digital industrial grade thermometer | ||
| Model | DTSW-1-A | DTSW-1-B | DTSW-2-A | DTSW-2-B |
| Temperature range | -60~160℃ | -60~300℃ | -60~160℃ | -60~300℃ |
| Accuracy | 0.04℃+0.005%FS | 0.05℃+0.01%FS | 0.1℃/0.2℃ | |
| Calibration cycle | 1 year | 1 year | ||
| Host temperature coefficient | <1ppm/℃ | <1ppm/℃ | <1ppm/℃ | |
| Sensor length | 300mm、500mm（19.68 in） | |||
| Sensor diameter | 6mm | |||
| Sensor material | 316 stainless steel (medical, food grade) | |||
| Sensor specifications | Thin film platinum resistance | Wire wound platinum resistance | Wire wound platinum resistance | |
| Sensor temperature coefficient | Rated value 0.00385 Ω / Ω / ℃ | Rated value 0.00385 Ω / Ω / ℃ | ||
| Display resolution | 0.001 ℃ (user can configure 0.1 ℃, 0.01 ℃) | 0.001 ℃ (user can configure 0.1 ℃, 0.01 ℃) | ||
| Sampling frequency | 0.5S、1S、2S Configurable | 0.5S、1S、2S Configurable | ||
| Thermal response time constant | 30S | 30S | ||
| Data storage | 16000 sets of data (with time stamp) | 16000 sets of data (with time stamp) | ||
| Way of communication | USB and wireless communication | USB and wireless communication | ||
| Wireless communication distance | Up to 160m without obstruction | Up to 160m without obstruction | ||
| Type of battery | High temperature lithium battery | High temperature lithium battery | ||
| Lithium battery life | Not less than 1000 charge and discharge cycles | Not less than 2000 charge and discharge cycles | ||
| Lithium battery full time | 2 hours | 2 hours | ||
| Charging voltage | DC5V | DC5V | ||
| Preheat time | Available after 1 minute warm-up | Available after 1 minute warm-up | ||
| Communication module operating temperature | −20 ℃ to 60 ℃ (14 ° F to 122 ° F) | −20 ℃ to 60 ℃ (14 ° F to 122 ° F) | ||
| Host working environment | −10 ℃ to 50 ℃ (14 ° F to 122 ° F) | −10 ℃ to 50 ℃ (14 ° F to 122 ° F) | ||
| Host protection level | IP50 | IP50 | ||
| Sensor protection level | IP68 | IP68 | ||
| Host size (mm) | 106 (length) ×48 (width) ×37 (thick) | 106 (length) ×48 (width) ×37 (thick) | ||
| Total Weight | 202g | 202g | ||
| Storage conditions | −20 ℃to 60 ℃ (−4 ° F to 140 ° F) 5% RH-80% RH (no condensation) | −20 ℃ to 60 ℃ (−4 ° F to 140 ° F) 5% RH-80% RH (no condensation) | ||
