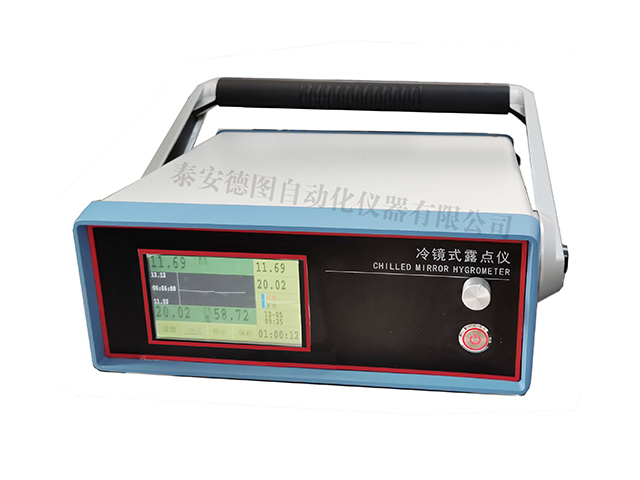

DT-ACG Type Precision Dew Point Meter
Technical indicator:
Temp scale range: -20℃ ~ + 95℃ (optional)
Accuracy: ±0.2℃ (optional ±0.1℃)
Dew-point temperature sensor:
Accuracy: ±0.2℃ (optional 0.1℃); resolution: 0.01℃
Temperature sensor: -40℃ ~ + 60℃
Precision: ±0.1℃; resolution: 0.01℃
Repeatability: ≤±0.05℃
Refrigeration mode: secondary semiconductor Palpaste refrigeration
Signal output: serial port communication R232
Power supply: 220VAC,50/60Hz; power: 60W
Operating temperature: -20~50℃; Humidity: ≦95%
Service life: Permanent free calibration
Product features:
Range width: -20℃ ~ + 95℃
High accuracy: 0.2℃ (optional 0.1℃)
High resolution: 0.01℃
The whole-process curve is displayed in real time to record the test time
Touch screen operation, Chinese interface, easy operation
Automatic balancing system, with a short measurement time
Mirror contamination self-detection function, manual way of cleaning the mirror
Data storage, query, and printing capabilities
Long-term stability, good reproducibility, you can do online analysis
The user can do single-point or multipoint calibration without software operation
